TIME:2023-09-11
Strips steel coil
Another name:
GI, GL, PPGI, PPGL slitting steel coils
Strips steel coils use GI, GL, PPGI, PPGL slitting the width as customer required size.
As a long history galvanized steel supplier, Chengli Metal control the quality strictly so that we can guarantee our products meet our customers' requirement.
Specifications
Standards | ASTM/AISI/BS/DIN/JIS/GB etc. |
Certificates | ISO9001/ISO14001/SGS/PVOC/SONCAP |
Base metal | GI/ GL/ PPGI/ PPGL/ AZM |
Thickness | 0.11-2.00mm |
Width | 10-600mm |
Zinc coating | 20-275g/m² |
Hardness | HRB55-HRB95 |
Guard film | PVC etc. |
Surface treatment | Chromated/skin-pass/oiled/slight-oiled/dry |

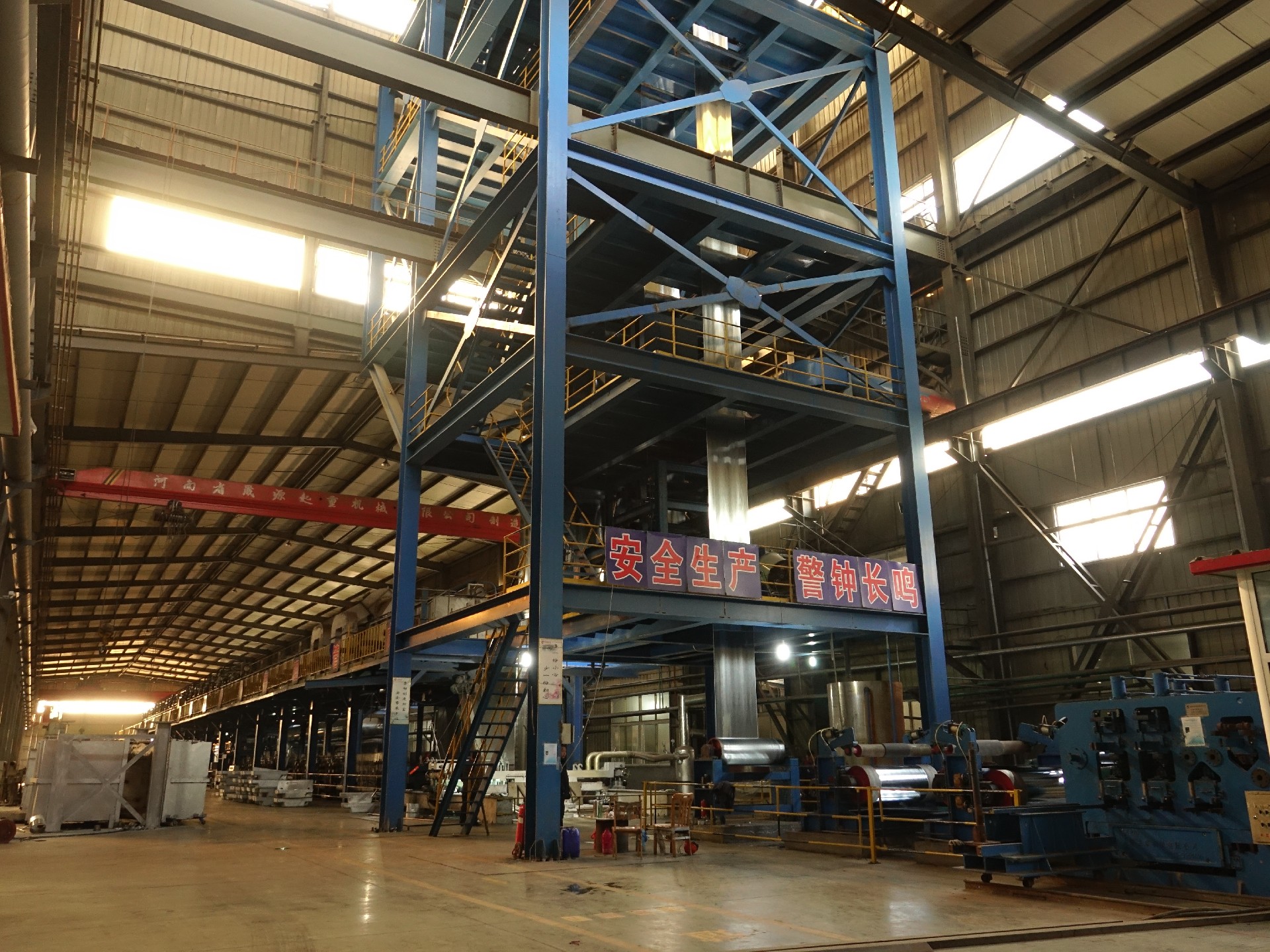

Production Line
The annual capacity of Galvanized steel 120,000 tons.

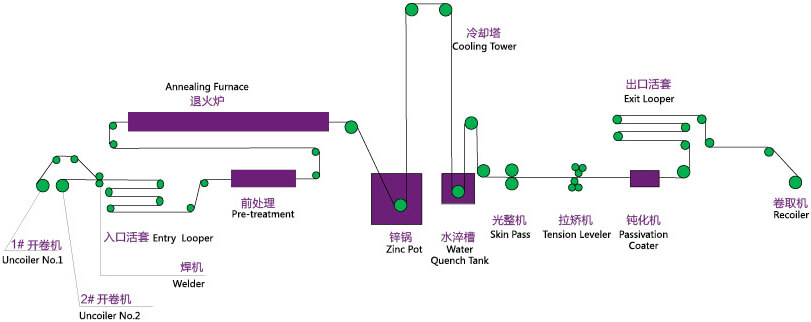

Prepainted color coated coil Production Process Flow Chart

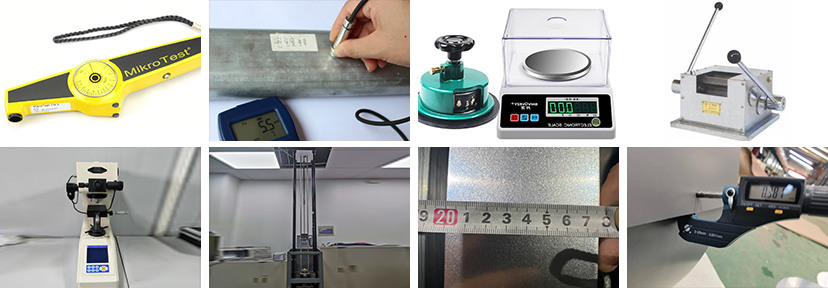

Quality Control
We have advanced testing center Lab. and team to control our product quality.
Packing Details
1) 4 eye steel bands and 4 circumferential steel bands.
2) Galvanized steel fluted rings on inner and outer edges.
3) Galvanized steel sheet and waterproof paper wall protection.
4) Galvanized steel and waterproof paper around circumference and bore protection.
